COBAswitch BS EN: 61111 Electrical Safety Matting
Electrical insulating matting that conforms to BS EN 61111:2009
- Specialist electrical insulating matting to protect operatives from electrical shocks.
- Conforms to the most recent internationally recognised safety standard IEC 61111:2009 /BS EN 61111:2009.
- Designed specifically for use in front of switchboards and for other areas with high voltage equipment.
- Three thicknesses available to meet the different classes of working voltage, Class 0, Class 2 and Class 4.

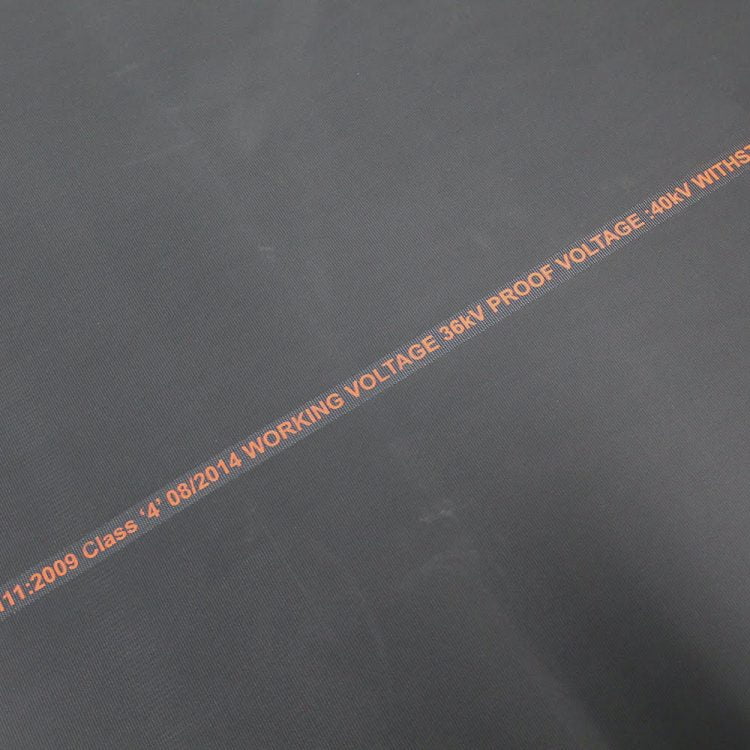

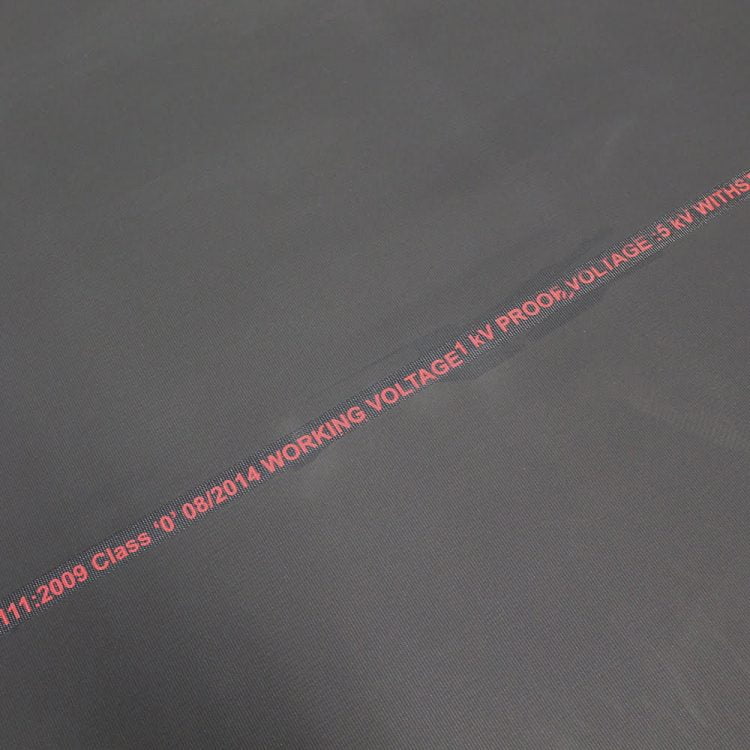

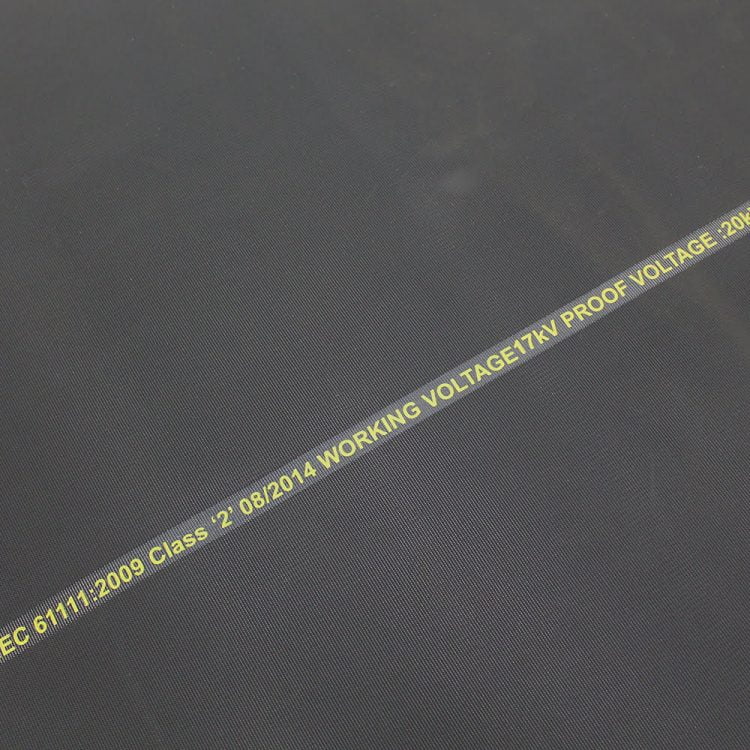

- Colour coded on the reverse clearly identifying the working voltage classification.

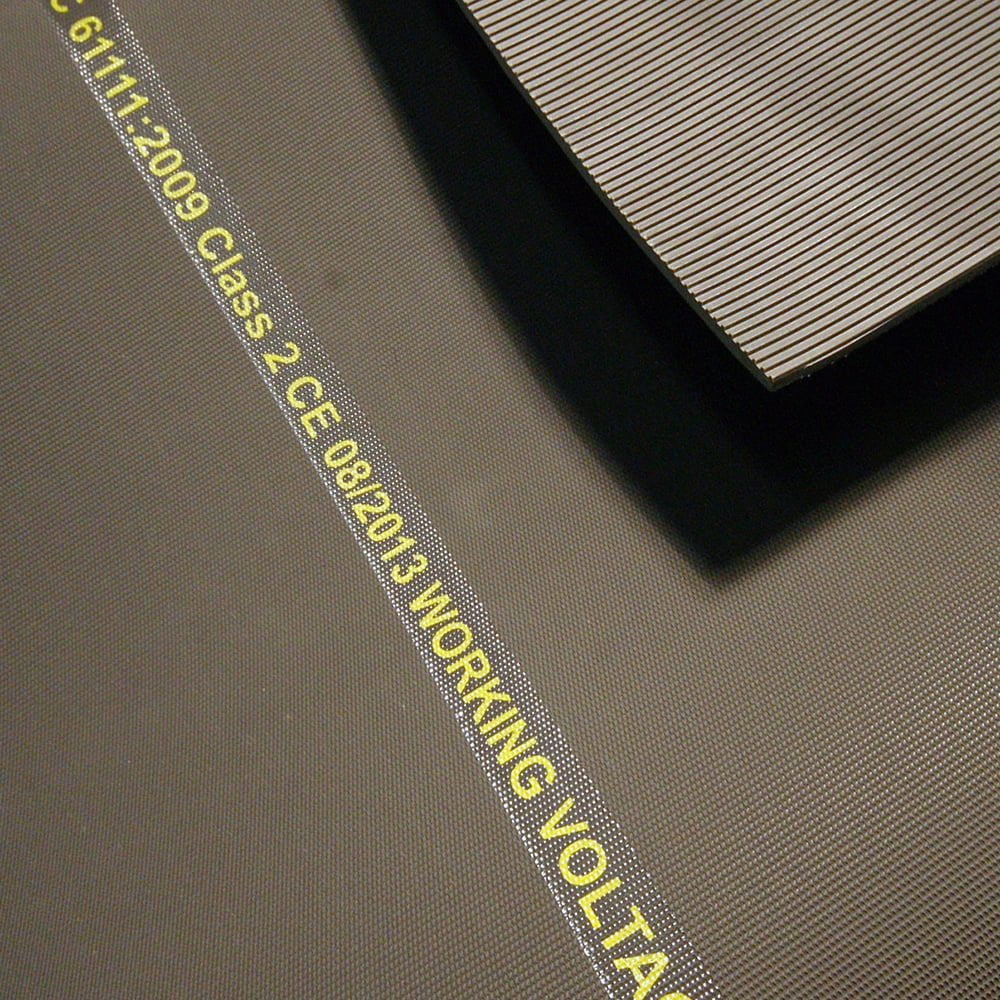

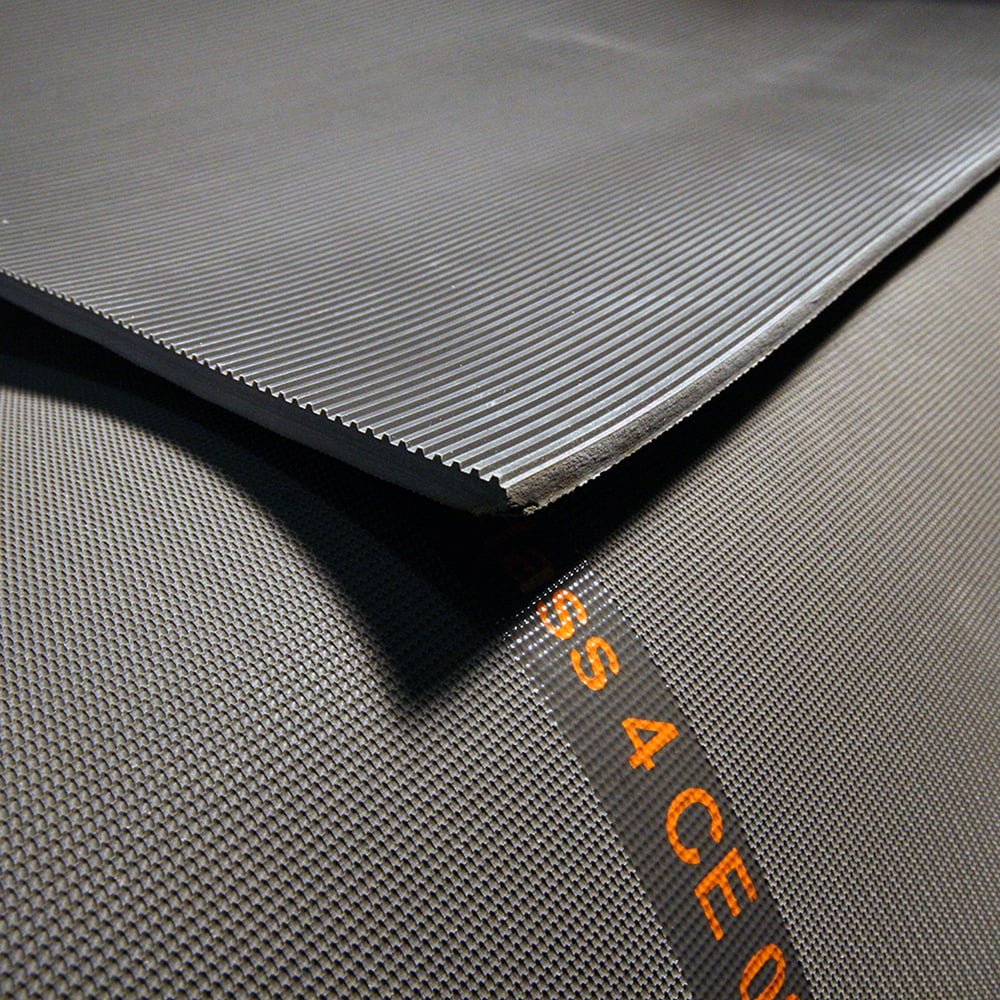

- Ribbed surface helps to provide a firmer footing, reducing the risk of slips while improving standing comfort.
Styles Available
- Parts
- Technical Specification
- Voltage Info
- Downloads
- Test Certificates
Parts |
|||||
| Part Number | Size | Description | Colour | Weight (kg) | Price Request |
|---|---|---|---|---|---|
| SM010071 | 1 m x 1 m (5 mm) | Class 4 | Black | 6.85 | Request Price |
| SM010062 | 1 m x 2 m (4 mm) | Class 2 | Black | 10.06 | Request Price |
| SM010061 | 1 m x 1 m (4 mm) | Class 2 | Black | 5.03 | Request Price |
| SM010052 | 1 m x 2 m (3 mm) | Class 0 | Black | 9 | Request Price |
| SM010051 | 1 m x 1 m (3 mm) | Class 0 | Black | 4.5 | Request Price |
| SM010072 | 1 m x 2 m (5 mm) | Class 4 | Black | 13.7 | Request Price |
| SM010070C5 | 1 m x 5 m (5 mm) | Class 4 | Black | 34.25 | Request Price |
| SM010060C5 | 1 m x 5 m (4 mm) | Class 2 | Black | 25.15 | Request Price |
| SM010050C5 | 1 m x 5 m (3 mm) | Class 0 | Black | 22.5 | Request Price |
| SM010070C | 1 m x per linear metre (5 mm) | Class 4 | Black | 6.85 | Request Price |
| SM010070 | 1 m x 10 m (5 mm) | Class 4 | Black | 68.5 | Request Price |
| SM010060C | 1 m x per linear metre (4 mm) | Class 2 | Black | 5.03 | Request Price |
| SM010060 | 1 m x 10 m (4 mm) | Class 2 | Black | 50.3 | Request Price |
| SM010050C | 1 m x per linear metre (3 mm) | Class 0 | Black | 4.5 | Request Price |
| SM010050 | 1 m x 10 m (3 mm) | Class 0 | Black | 45 | Request Price |
Technical Specification |
|
| Material | EPDM rubber |
| Surface Finish | Fine fluted ribs |

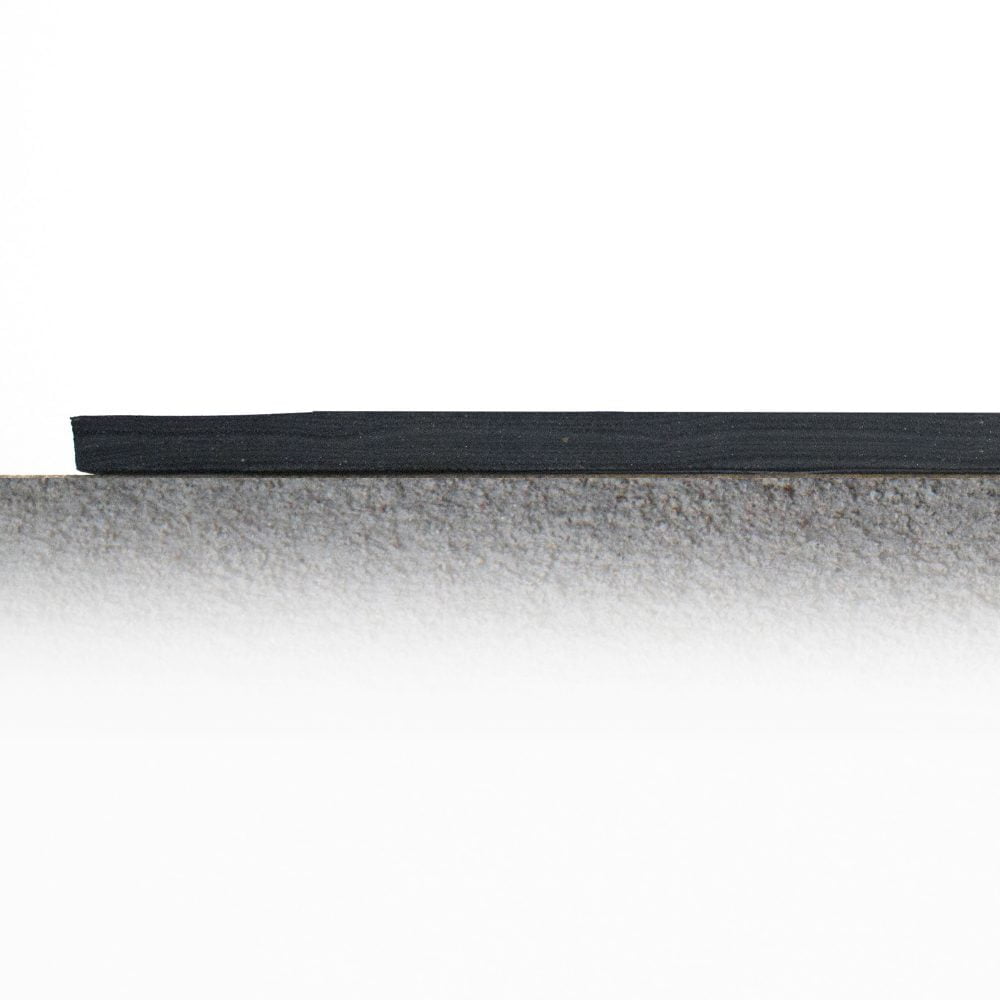

| Product Height | 3 mm, 4 mm, 5 mm |
| Roll Length | 10 m |
| Min. Operating Temperature | -30°C |
| Max. Operating Temperature | +80°C |
| Resistance to Chemicals | Resistant to acid and oil at low temperatures |
| Environmental Resistance | Suitable for dry indoor environments |
| UV Resistance | Yes |
| Typical Applications | High voltage areas, Open switchboards |
| Installation Method | Loose lay |
| Cleaning Method | Hose down or pressure wash using a mild detergent |
| BS EN 61111:2009 Class | Thickness | Working Voltage | Withstand Tested To |
|---|---|---|---|
| Class 0 | 3mm | 1KV | 10KV |
| Class 2 | 4mm | 17KV | 30KV |
| Class 4 | 5mm | 36KV | 50KV |
