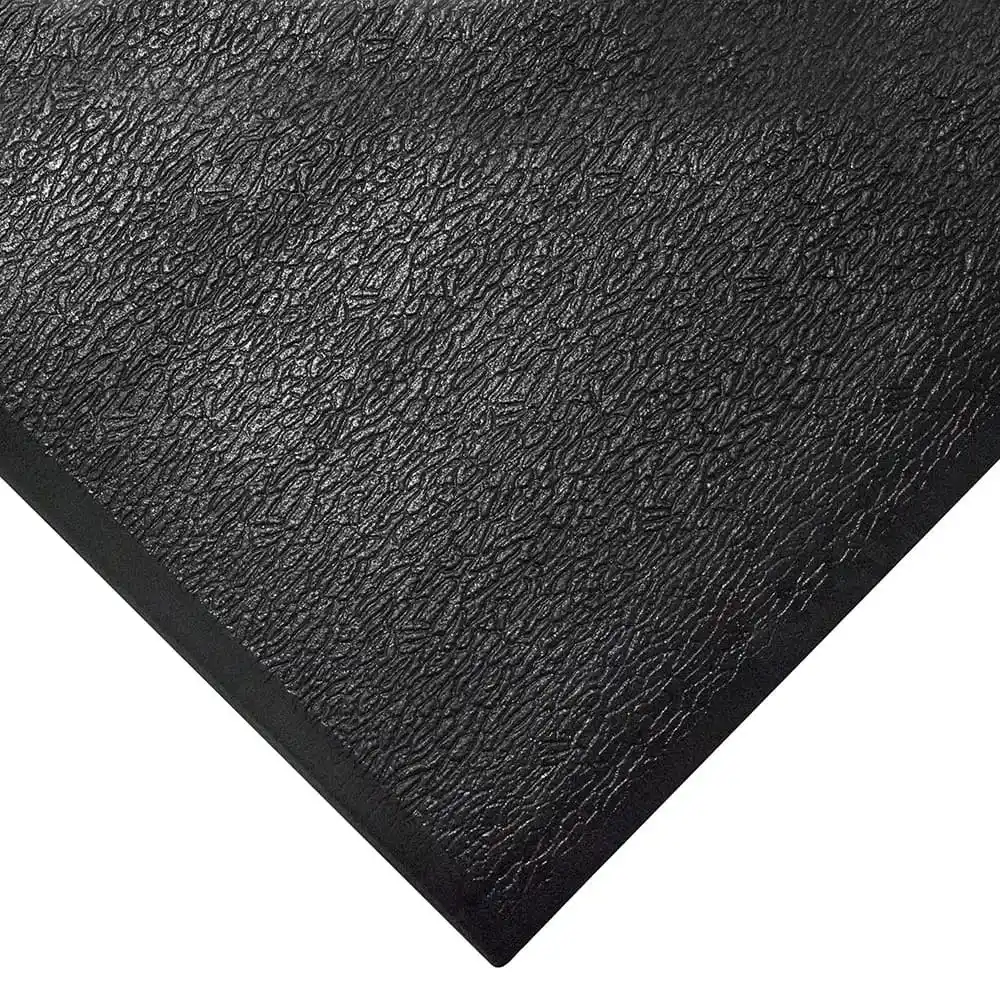

Orthomat® Standard Anti Fatigue Mat
Quickly tackle standing fatigue in dry workplaces
- Versatile single layer foam anti-fatigue mat.
- Insulates standing workers against the effects of cold concrete floors.
- Lightweight, so easy to transport and reposition.
- Best suited to dry environments.
- High visibility version available with bright yellow borders.
- Textured surface provides attractive appearance.
- Available in mats and rolls.
- Ideal for lighter industrial use where the user doesn’t turn regularly in a static position.
- Fire tested to BS EN 13501-1.
Styles Available
Standard
Safety- Parts
- Technical Specification
- Downloads
- Test Certificates
Parts | ||||
| Part Number | Size | Colour | Weight (kg) | Price Request |
|---|---|---|---|---|
| AF010706C | 1.2 m x per linear metre | Black/Yellow | 2.1 | Request Price |
| AF010706 | 1.2 m x 18.3 m | Black/Yellow | 70 | Request Price |
| AF010703C | 0.9 m x per linear metre | Black/Yellow | 3.01 | Request Price |
| AF010702 | 0.9 m x 1.5 m | Black/Yellow | 3.27 | Request Price |
| AF010701 | 0.6 m x 0.9 m | Black/Yellow | 1.31 | Request Price |
| AF010703 | 0.9 m x 18.3 m | Black/Yellow | 40 | Request Price |
Technical Specification | |
| Material | Open Cell PVC (Foam) |
| Surface Finish | Pebble |
| Product Height | 9.5 mm |
| Roll Length | 18.3 m |
| Size of Safety Border | 100 mm |
| Min. Operating Temperature | 0°C |
| Max. Operating Temperature | +60°C |
| Environmental Resistance | Suitable for dry indoor environments |
| Typical Applications | Production lines, Assembly areas, Packing stations, Workbenches |
| Installation Method | Loose lay |
| Cleaning Method | Brush/mop the top surface |
| Fire Tested to | BS EN 13501-1 Class Dfl - s1 |
| Guarantee | 1 year when used in a dry environment |
| Adhesive recommended by F.Ball for permanent bond | F44 |
| Tackifier recommended by F.Ball | F41 |
| Adhesive recommended by F.Ball for heavy-duty/wet areas | F74, F81, F84 |
